How to Install a Solar Wall Light?

Installing a solar wall light is easy! This comprehensive guide will walk you through every step, from preparation to installation, to ensure your outdoor lighting project is smooth and efficient.

Step 1: Choose the Optimal Mounting Location

The key to a successful solar wall light installation is choosing a location where the solar panels receive ample sunlight.

• Sufficient sunlight is paramount: The optimal location should receive direct sunlight for most of the day. Sufficient sunlight ensures the solar wall light's batteries are fully charged, ensuring longer, brighter light at night.


• Avoid obstructions: Ensure that trees, eaves, high walls, or other large objects don't cast shadows on the solar panels during the day.


• Consider your lighting needs: What is the purpose of your patio, garden, or decorative light installation? Determine the area you need to illuminate, such as a porch, garage, walkway, or patio, so you can mount the solar wall light at the most effective height and angle.



Step 2: Prepare Tools and Inspect the Light

Before beginning installation, gather all necessary tools and inspect the solar wall light itself.

• Required Tools: You'll typically need a screwdriver, a power drill (if drilling into a hard surface), a pencil, a measuring tape, and possibly a ladder.


• Inspect the fixture: Verify that all components of the wall light are intact and intact, including the light body, mounting bracket, screws, and expansion tube. Before first use, it's recommended to allow the solar wall light to fully charge in sunlight for a day.


• Understand the Operation: Solar wall lights typically have built-in light-controlled sensors that charge during the day and automatically illuminate at night. Familiarize yourself with any additional switches or modes (such as sensor mode or constant on mode) on your wall light.


Step 3: Detailed Installation Steps

The installation process varies depending on the model of solar wall light, but the core steps are similar.

1. Mark the Drill Hole Locations

Place the wall light's mounting bracket or base on the selected wall surface. Use a pencil to mark the screw hole locations through the holes in the bracket.

Use a level to ensure the marked points are aligned to ensure the outdoor wall light is level after installation.

2. Drilling and Installing the Expansion Tube (For Hard Walls)

Select an appropriate drill bit based on the size of the screws and expansion tubes.

Drill holes at the marked points.

Gently tap the expansion tubes into the holes until they are flush with the wall.

3. Securing the Mounting Bracket

Align the mounting bracket with the holes.

Use a screwdriver or electric drill to insert the screws through the bracket and into the expansion tubes, firmly securing the bracket to the wall.

4. Securing the Solar Wall Light

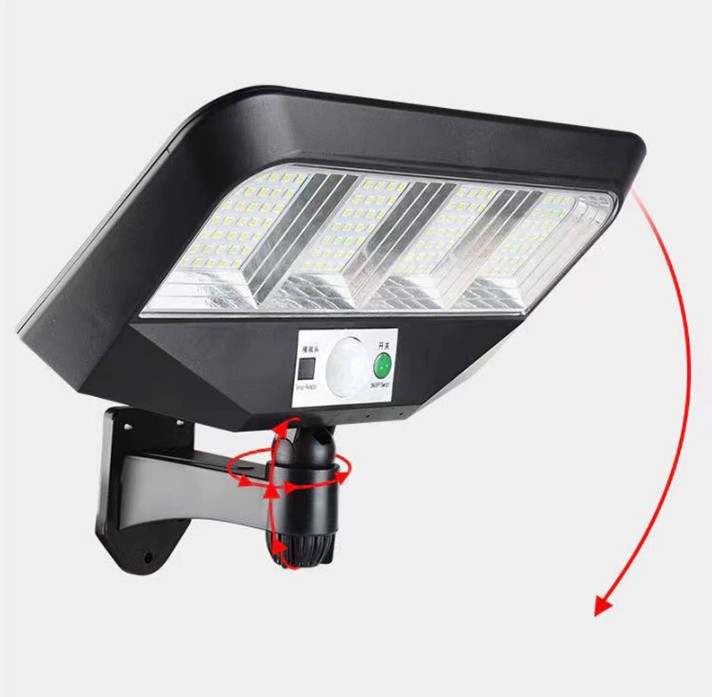

Align and install the solar wall light body onto the secured bracket. This is usually accomplished by sliding it in, snapping it in, or using additional screws.

Some solar lights are split, with the solar panel and light body installed separately. Connect the charging cable according to the product manual and align the solar panel for optimal light reception.

Step 4: Final Testing and Maintenance

After installation, perform a final check to ensure the solar wall light is functioning properly.

• Functional Test: Cover the solar panel with your hand or wait until nightfall to observe whether the LED light automatically illuminates. If the solar wall light has a motion detection mode, you can test its presence detection function after turning it on.


• Regular Cleaning: To maintain optimal performance of the solar wall light, it is recommended to wipe dust and dirt from the solar panel surface with a damp cloth every few months to ensure maximum charging efficiency.


• Battery Maintenance: Although the lithium battery in the solar light has a long lifespan, if you notice a significant decrease in lighting time, you may need to consider replacing the rechargeable battery.



Following the above steps, you can easily install your solar wall light and enjoy its convenience and beauty. This energy-saving lighting method not only beautifies your home but also contributes to environmental protection.
